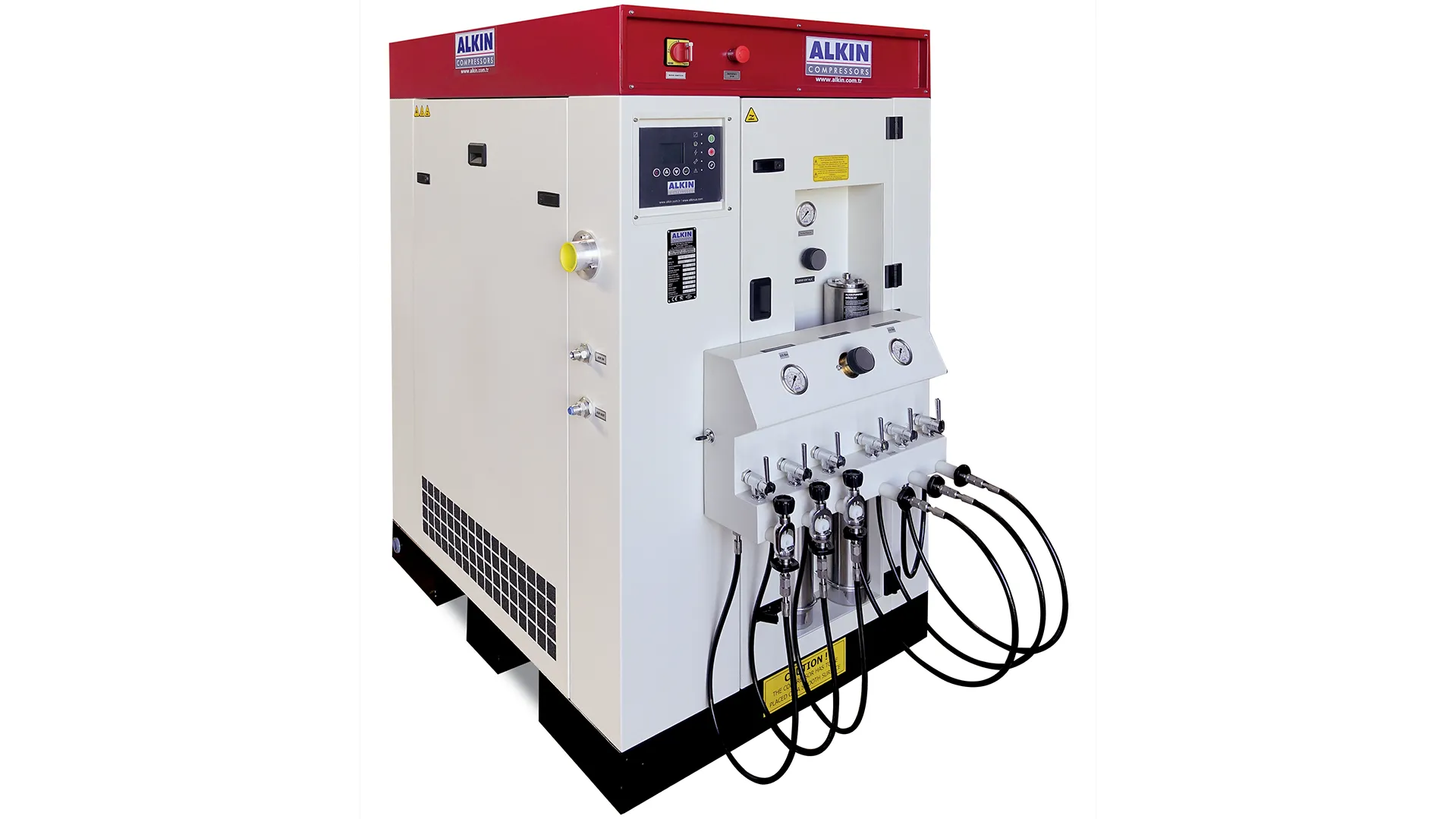

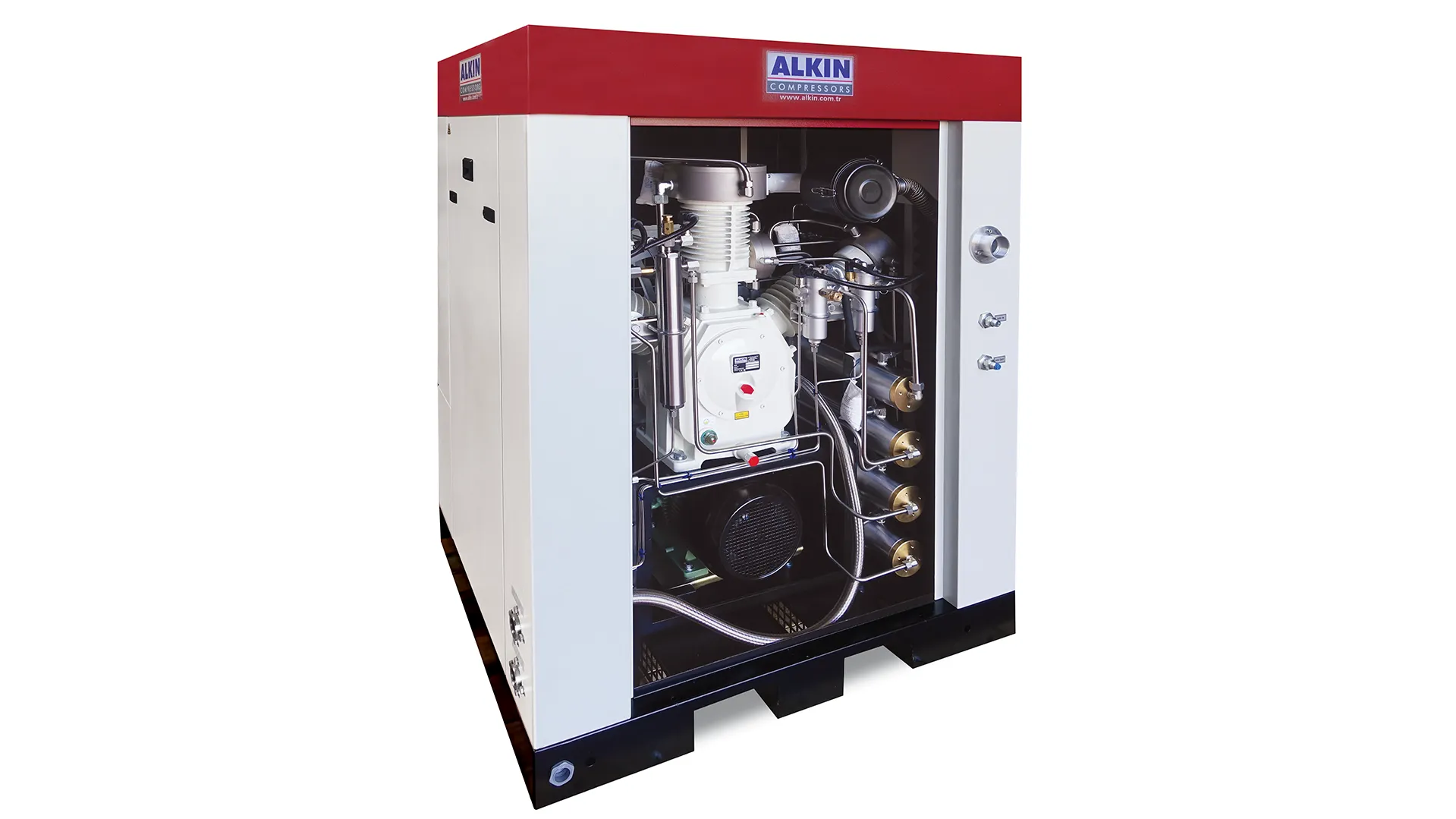

W4 Canopy
HW 1500 series water-cooled high-pressure air compressors are ideal for industrial applications and for satisfying compressed air requirements in the hardest environments air cooling is not possible sufficient.
Technicial Specifications
| Model | Working Pressure | Free Air Delivery (FAD) | Motor Power | Speed | Number of Stage | Weight | Dimensions (cm) | ||||||
| bar | psi | l/min | m3/h | cfm | kw | hp | rpm | kg | W | L | H | ||
| W4 | 310 | 4500 | 685 | 41 | 24 | 15 | 20 | 755 | 4 | 1000 | 84 | 168 | 144 |
- Alkin Compressor reserves the right to change the information and pictures in its brochures without prior notice.
Standard Features
- 1st, 2nd, 3rd and 4th Stage Water Separator
- Fresh/Seawater Cooling System
- Intercooler heat exchangers (stainless)
- Cathodic Protection
- Check Valve
- Safety Valve for Each Stage
- Electrostatic painted chassis
- Automatic Drain
- Automatic Start / Stop
- Water Pressure Switch
- Oil Pump
- Oil Pressure Switch
- Oil Filter
- Shock Mounts
- Stage Pressure Gauges, Oil Pressure Gauges, Cooling Water Pressure Gauges
Optional
Sectors
- Military Application
- Navy (Surface Ships and Submarines)
- Civil Defense Applications
- Industrial Applications
Frequently Asked Questions
Air compressors work by compressing atmospheric air in a smaller volume of piston-cylinder, screw, etc. and pressurize it depending on your special needs.
Piston compressors are sufficient for short-term high pressure air needs. If you need a long-life, low-pressure compressor that provides continuous airflow, the screw compressor should be your primary choice.
Alkin Compressors always endeavours to respond to customer enquiries as soon as possible. Please visit contact page our opening times for further information regarding Alkın Compressors’s office hours.
Air/gas compressors produced by Alkın Compressor come with a 2-year warranty, providing they are serviced by ourselves. However, longer warranties for compressors are available on request.
