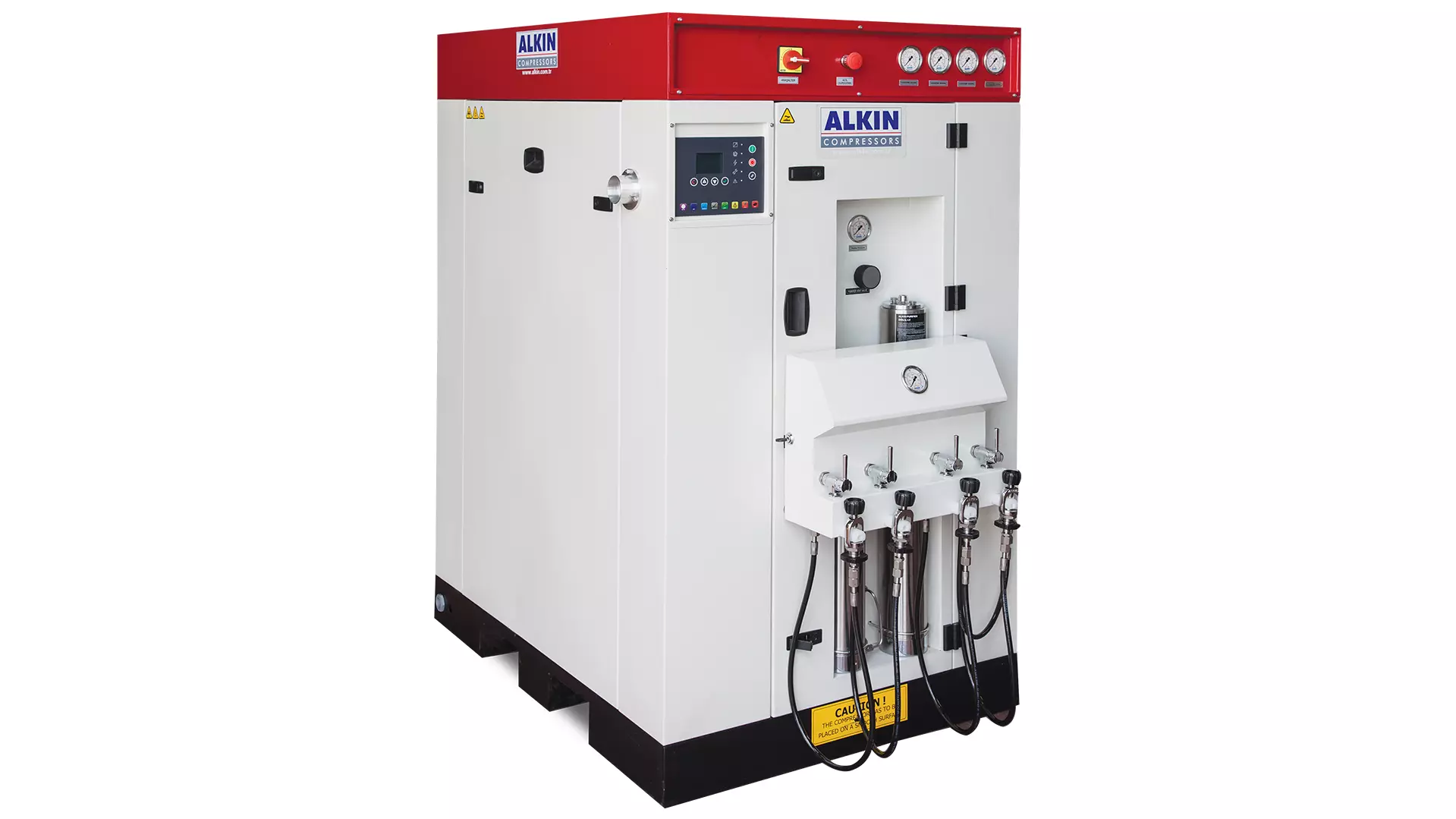

W4 Canopy
W4 series compressors have proven themselves in industries compressed air and breathing air are required for many years, thanks to their strong and powerful design. The user-friendly PLC-based control panel efficiently meets your compressor management, data tracking, help, and communication needs. It is a 4-stage reciprocating compressor with splash lubrication in its soundproof cabin.
Compressed air capacity ranges from 500 to 1000 liters per minute at a maximum working pressure of 415 bar.
Technicial Specifications
| Model | Working Pressure | Free Air Delivery (FAD)* | Motor Power | Speed | Number of Stage | Weight | Dimensions (cm) | ||||||
| bar | psi | l/min | m3/h | cfm | kw | hp | rpm | kg | W | L | H | ||
| W4 Canopy | 225 | 3260 | 450 | 27 | 16 | 7,5 | 10 | 600 | 4 | 800 | 96 | 128 | 172 |
| 225 | 3260 | 600 | 36 | 21 | 11 | 15 | 740 | 4 | 810 | 96 | 128 | 172 | |
| 225 | 3260 | 685 | 41 | 24 | 15 | 20 | 830 | 4 | 810 | 96 | 128 | 172 | |
| 310 | 4500 | 600 | 36 | 21 | 11 | 15 | 720 | 4 | 815 | 96 | 128 | 172 | |
| 310 | 4500 | 685 | 41 | 24 | 15 | 20 | 830 | 4 | 815 | 96 | 128 | 172 | |
| 415 | 6000 | 628 | 38 | 22 | 15 | 20 | 830 | 4 | 820 | 96 | 128 | 172 | |
| 310 | 4500 | 850 | 57 | 34 | 18,5 | 25 | 850 | 4 | 1000 | 96 | 128 | 172 | |
| 310 | 4500 | 950 | 57 | 34 | 22 | 30 | 900 | 4 | 1020 | 96 | 128 | 172 | |
Based on recharging a 10 lt cylinder from 0 to 200 barg. 415 bar are available. ALKIN COMPRESSOR can change information and pictures in their brochure without any prior notice.
Standard Features
- P61 Purifier (Stainless) and Refillable Cartridge (Stainless)
- High Pressure Particle ve Oil Separator Filter
- 2nd, 3rd and 4th Stage Water Separator (Stainless)
- Intercooler (Stainless)
- Aftercooler (Stainless)
- Priority Valve - Check Valve
- Oil Level Glass
- Soundproof Cabin
- 2 pes Fan for Strong Cooling
- Safety Valve at Each Stage
- Shock Mounts
- Automatic Start/Stop
- Automatic Discharge
- Thermal Overload Protection for Electric Motor
- PLC Touch Screen Control System
- 4 Ports Filling Panel (Manometer Showing Tube Pressure, Fill Hose, Yoke and Sleeve Valve)
- Breathing Air Quality Complies with EN 12021:2014
Optional
- Dual Pressure System 225-310 Bar / 3260-4500 Psi
- Diesel Engine Option
- Stainless Canopy
- Extra Fill Hose
- Replaceable (Disposable) Cartridge
- Water Cooled System
Sectors
- Scuba Diving
- Fire Departments
- Military Applications
- Shipyards
- Civil Defense Applications
- Gas Filling Facilities
- Fish Farms
- Paintball
Frequently Asked Questions
Air compressors work by compressing atmospheric air in a smaller volume of piston-cylinder, screw, etc. and pressurize it depending on your special needs.
Piston compressors are sufficient for short-term high pressure air needs. If you need a long-life, low-pressure compressor that provides continuous airflow, the screw compressor should be your primary choice.
Alkin Compressors always endeavours to respond to customer enquiries as soon as possible. Please visit contact page our opening times for further information regarding Alkın Compressors’s office hours.
Air/gas compressors produced by Alkın Compressor come with a 2-year warranty, providing they are serviced by ourselves. However, longer warranties for compressors are available on request.
