No-Magnetic Compressor Project

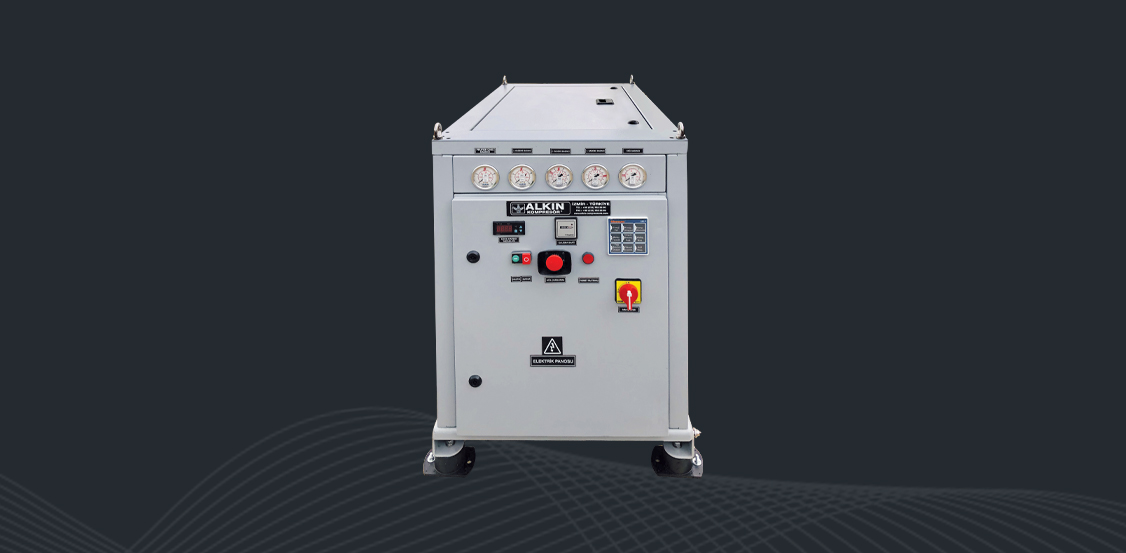

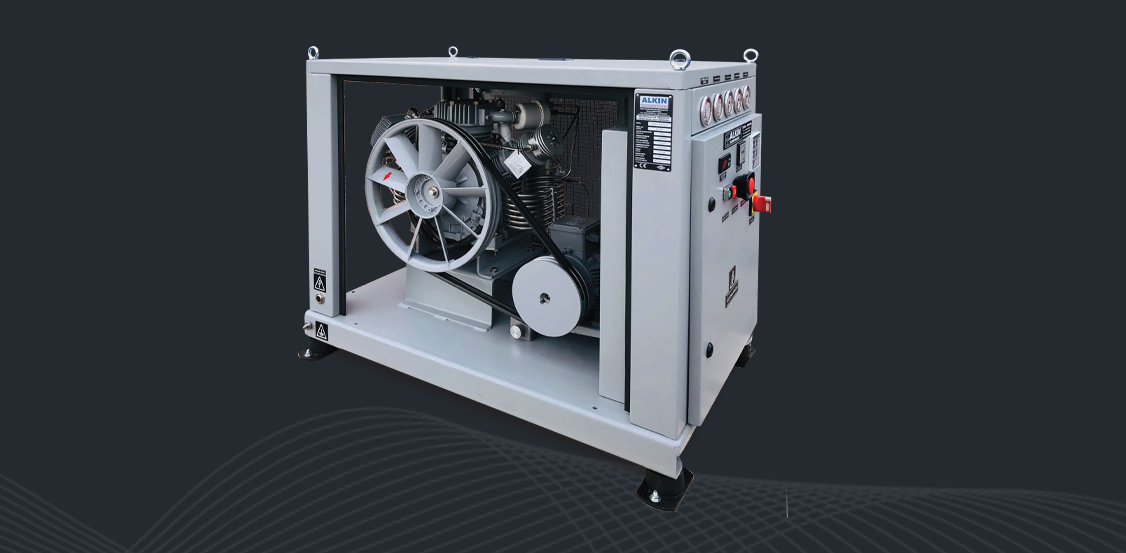

Our no-magnetic compressor project includes the production of high pressure breathing air compressors that were initiated upon the request from the Istanbul Shipyard Command and have not been produced in our country before. Our no-magnetic compressor is a non-magnetic version of our W32 Enclosed model high pressure breathing air compressor that has been redesigned and added to our portfolio as a new product. Our no-magnetic W32 Enclosed model is an air-cooled and oil-type air compressor designed for continuous operation, with a working pressure of 200 bar and a capacity of 250 lt/min. The factory performance tests of our compressor, which was produced to meet all the qualifications requested for military use, were successfully completed under the supervision of a 3rd party inspection organization, and subsequently its no-magnetic feature (magnetic signature intensity up to 30 nanotesla (nT)) was approved by an accredited laboratory.
| Model | Working Pressure | Free Air Flow (FAD)* | Motor Power | Turnover | Stage Number | Weight | Dimensions(cm) | ||||||
| bar | psi | lt/min | m3/h | cfm | kW | Hp | d/dk | W | L | H | |||
| W32 Non-Magnetic | 200 | 2900 | 250 | 15 | 8,8 | 7,3 | 5,5 | 1475 | 3 | 350 | 73 | 117 | 95 |
Based on recharging a 10 lt cylinder from 0 to 200 barg. Higher pressure models up to 350 bar are available. ALKIN COMPRESSOR can change information and pistures in their brochure without any prior notice.
